1. Introduction

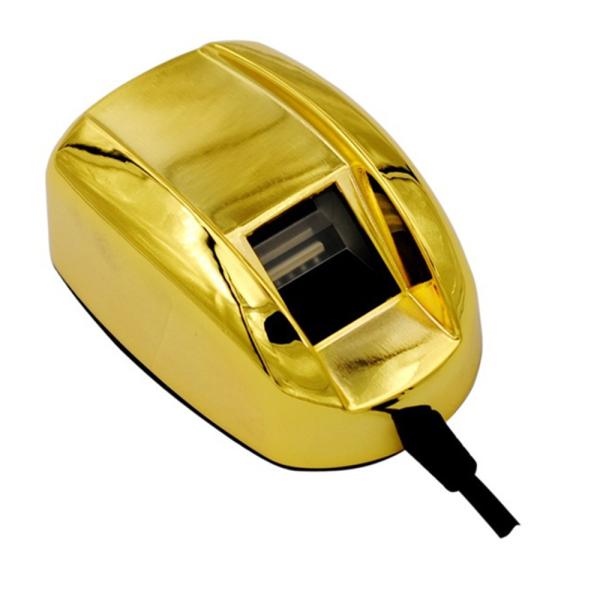

ZM11 is the small and exquisite (multiple colors) fingerprint
device in highly optical cost-effective and all-metal, which adopts
green light source and total reflection with flexible interface,
including USB by default, RS232, RS485, SPO(Optional) etc, to meet
customer's needs.
Companion, complete support and application of software package for
each platform are also available. Besides, it also supports Windows
platform, Linux32, Android, and other common platforms which are in
use to simplify the wat of development and application for
customers.
The products adopt the most advanced world-wile fingerprint
collection algorithm. Also, it owns the well-adapted ability to fit
in various conditions with high recognition rate, whenever fingers
are dry, wet or light textured. Strong antistatic capacity of 15KV
antistatic force; Long lifetime of up to 1 million times' wear
strength. In addition, it supports the comparison (only available
to 1000 customers) and storage inside equipment, as well as
comparison of servers (available to 100 thousands users).
The product can be designed in fingerprint heads, the only kind of
fingerprint head able to clearly collect pictures underwater and
most adapted to wet fingers.
Specification
| Communication | USB default; RS485, RS232 optional |
| Voltage | 3.7V-6.5VDC 100mA |
| Operate System | Windows platform, Linux32, Android |
| Sensor | Optical Sensor |
| Fingerprint Capacity | 100-1000 |
| FRR | 0.01% |
| FAR | 0.000% |
| Identification time | less than 1S |
| Image | RAW |
| Image Size | 256*288mm |
| Pixel resolution | 500DPI |
| Good anti-static | > 15KV, for dry weather |
| Anti-static | > 15 KV |
| Surface | Metal |
| Fingerprints | It reads dry, wet and rough fingers; and works very well with fingers of child and aged people |
| Durable | it can be used more than 1,000,000 times. |
| Operating temperature | -20°C -70 °C |
| Max Operating Humidity | 95% |
| Color | Gray, Anti-copper, Bronze, Golden, Silver |
