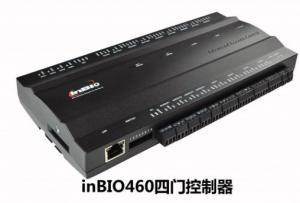

INBIO460 FINGERPRINT CARD READER ACCESS CONTROL BOARD WITH TCP/IP

Product Categories

KO TECHNOLOGY CO.,LIMITED

Contact Now

Add to Cart

	InBio-160	InBio-260	InBio-460
Number of doors controller	1 Door	2 Door	4 Door
Numbers of readers supported	4(2 RS-485 Reader, 2 26-bit wiegand reader)	8(4 RS-485 Reader, 4 26-bit wiegand reader)	12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported	26-bit Wiegand and RS485 FR Series Reader	26-bit Wiegand and RS485 FR Series Reader	26-bit Wiegand and RS485 FR Series Reader
Number of Inputs	3(Exit button and Door Status, 1 AUX)	6( 2 Exit button, 2 Door Status, 2 AUX)	12( 4 Exit button, 4 Door Status, 4 AUX)
Number of Outputs	2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)	4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)	8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
Card holders Capacity	60,000	60,000	60,000
Fingerprint Capacity	20,000	20000	20000
Log Events Capacity	100,000	100,000	100,000
Communication	TCP/IP	TCP/IP	TCP/IP
Package Dimension	350(L)×90(H)×300(W)mm	350(L)×90(H)×300(W)mm	350(L)×90(H)×300(W)mm
Package Weight	3.6kg	3.6kg	3.7kg
CPU	32 bit 1.2GHz CPU	32 bit 1.2GHz CPU	32 bit 1.2GHz CPU
RAM	128MB	128MB	128MB
Flash Memory	256MB	256MB	256MB
Power	9.6V-14.4V DC	9.6V-14.4V DC	9.6V-14.4V DC
Operating Temp	0-45 °C	0-45 °C	0-45 °C
Operating Humidity	20% to 80%	20% to 80%	20% to 80%
